Project Description

About this Project

This organ features the following:

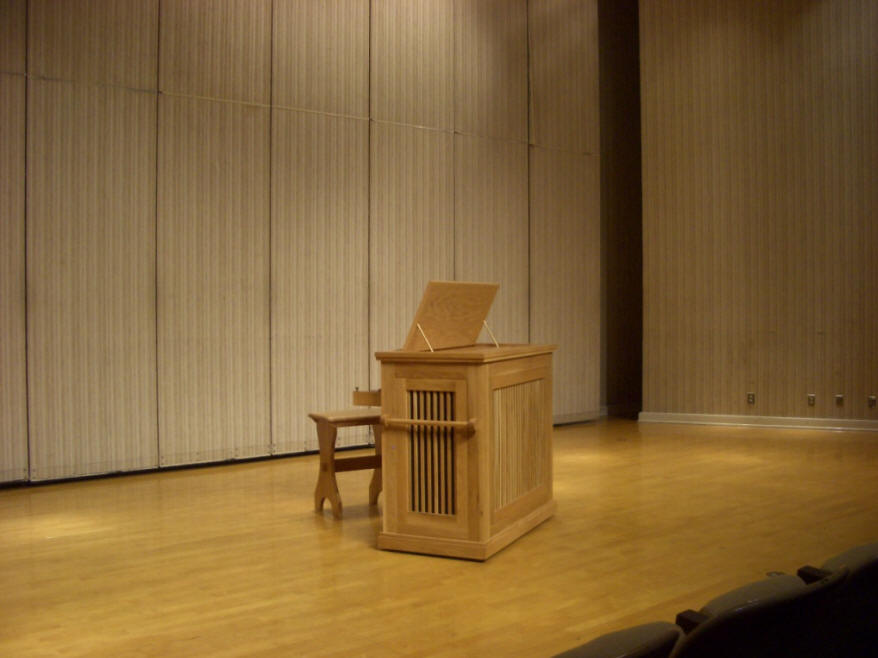

  • Portativ-style console
  • Drawknobs for stop controls
  • 1 new manual keyboard
    • standard wiper contact system
  • New thumb pistons by Syndyne
  • Expression knob on nameboard
  • Pitch knob on nameboard

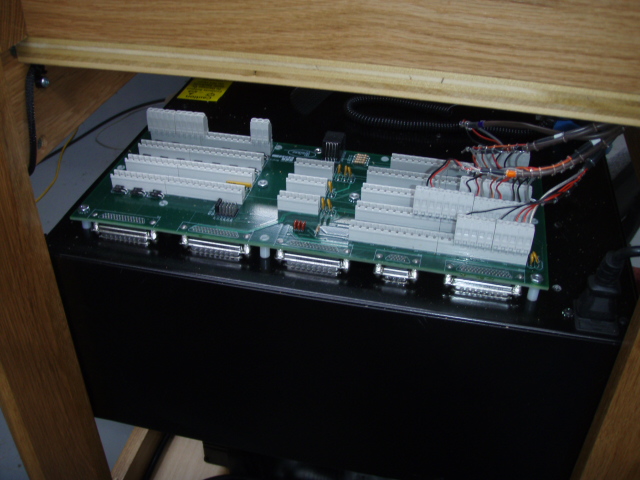

  • New solid state switching, console control, combination action
  • Fold-down music desk
  • On/Off switch
  • Transposer +6/-6
  • New organist’s bench
  • Complete MIDI Implementation:
    • MIDI In/Out/Thru ports
    • Sequencer In/Out ports
    • Auxiliary stereo audio input ports – 1/4″ jacks

Stop List

TEACART 1. Bourdon 16′
Expressive 2. Basson 16′
Manual I
3. Principal 8′
4. Gedeckt (BASS) 8′
5. Gedeckt (TREBLE) 8′
6. Gemshorn 8′
7. Gemshorn Celeste 8′
8. Prestant 4′
9. Flute (BASS) 4′
10. Flute (TREBLE) 4′
11. Twelfth 2 2/3′
12. Fifteenth 2′
13. Larigot 1 1/3′
14. Cornet III (TREBLE)
15. Cromorne (BASS) 8′
16. Cromorne (TREBLE) 8′
17. Tremulant
18. Harp
19. Celesta
20. Zimbelstern
COMBINATION Multiple Level Capture Combination Action
ACTION 10 Banks of Memory
Memory Bank Up
Memory Bank Down
10 Levels of Memory per Bank
Memory Level Up
Memory Level Down
General Combinations
MIDI BASS
MIDI TREBLE
General Cancel
Set
