Project Description

About this Project

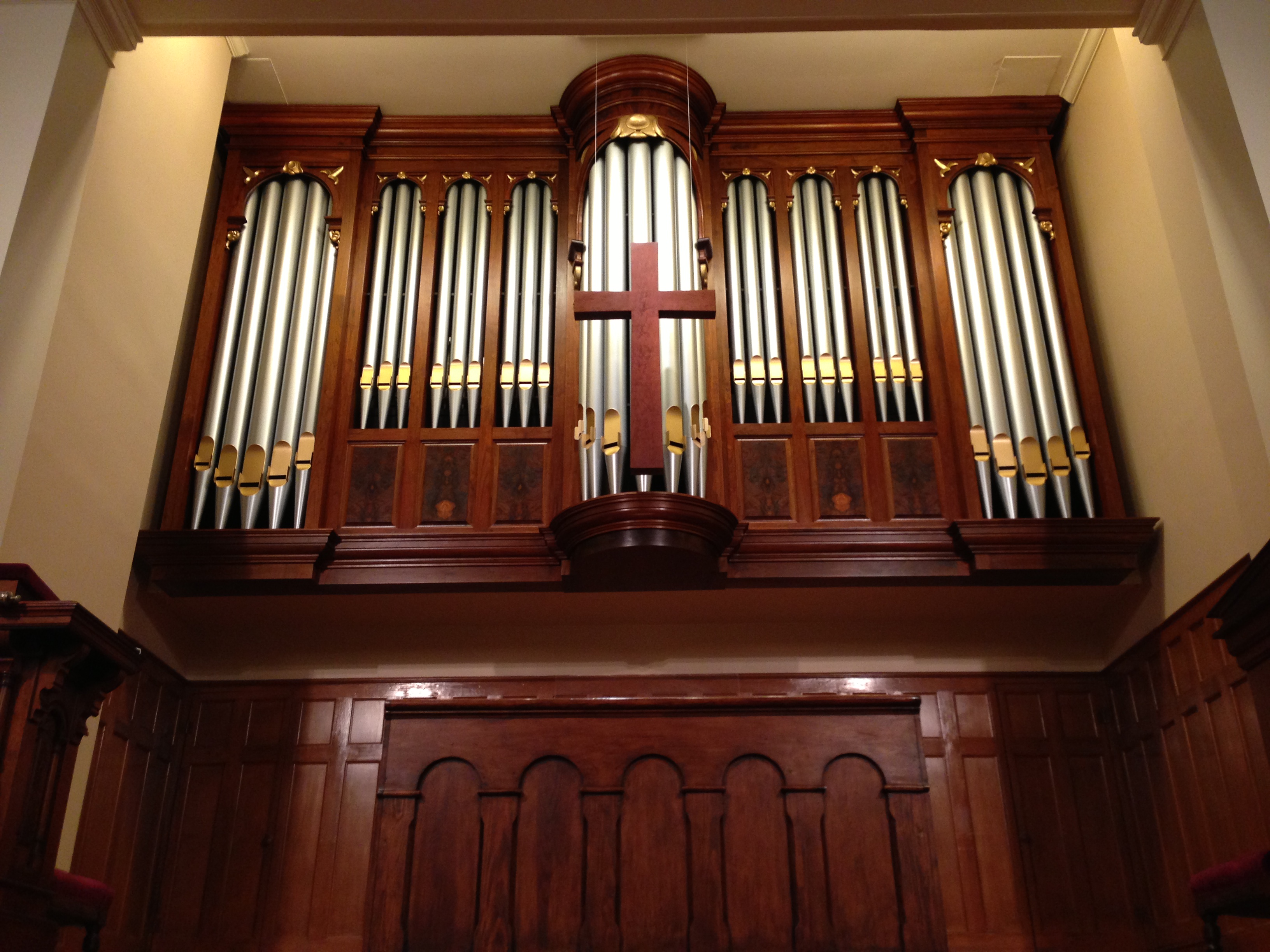

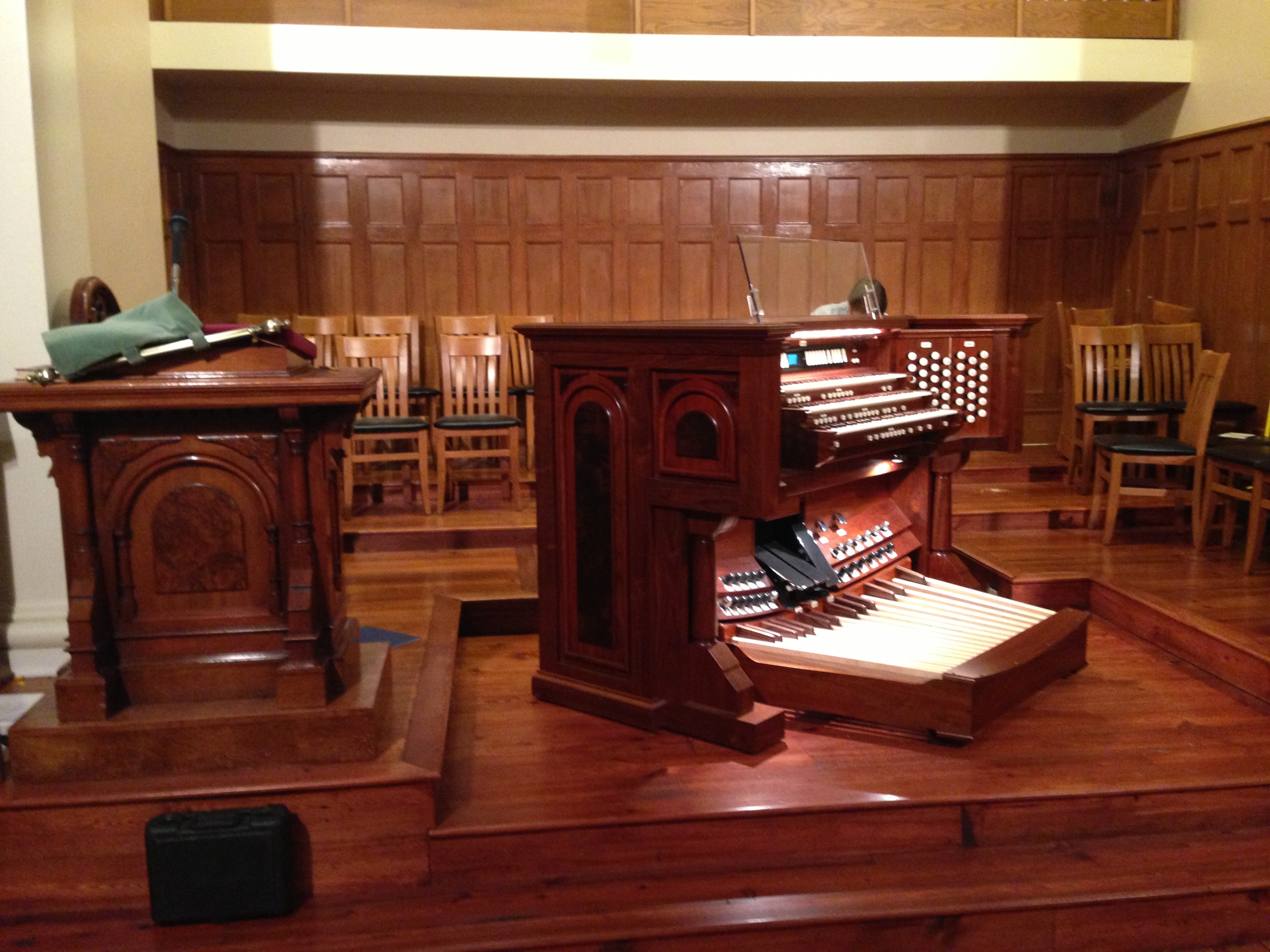

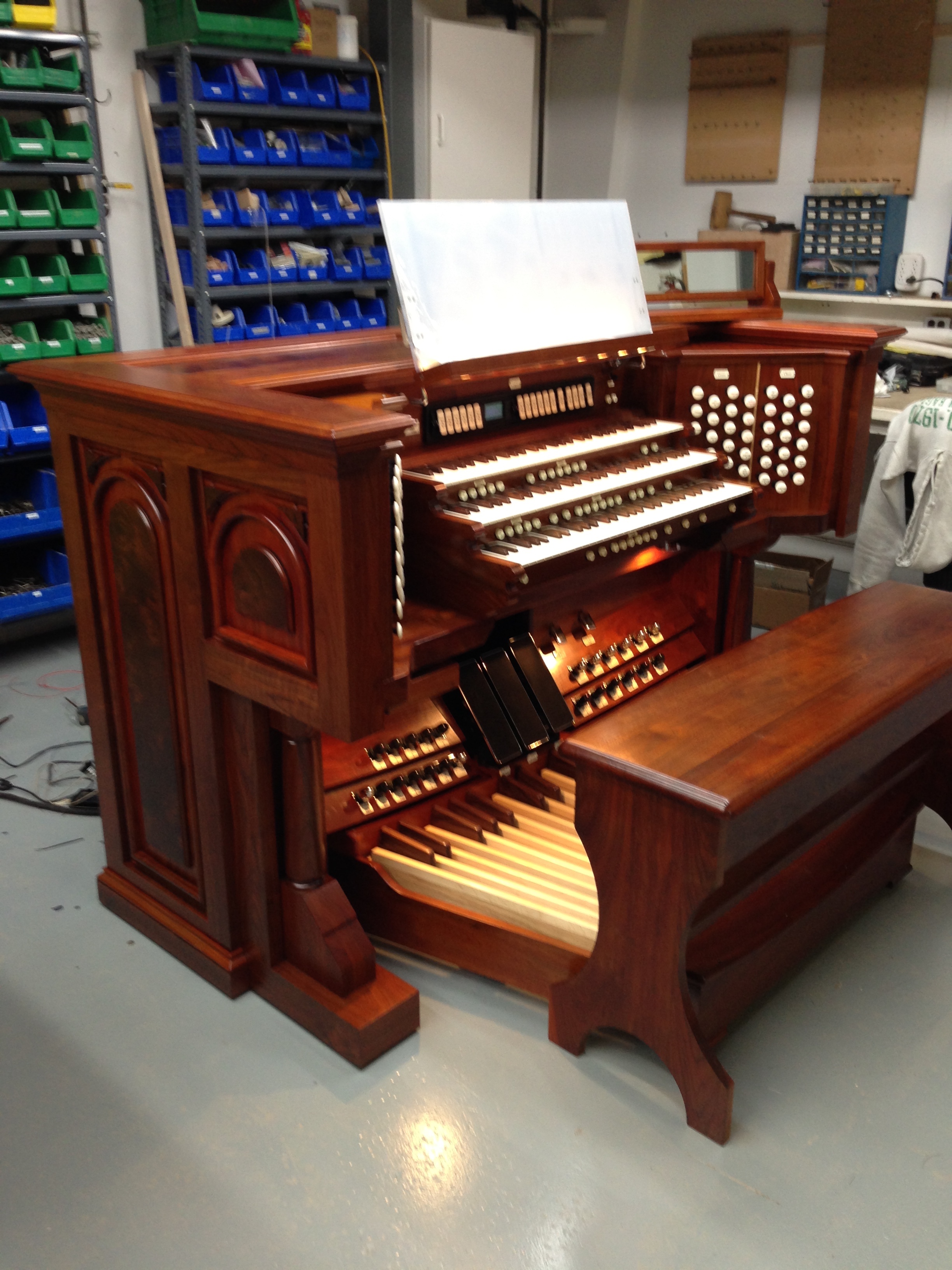

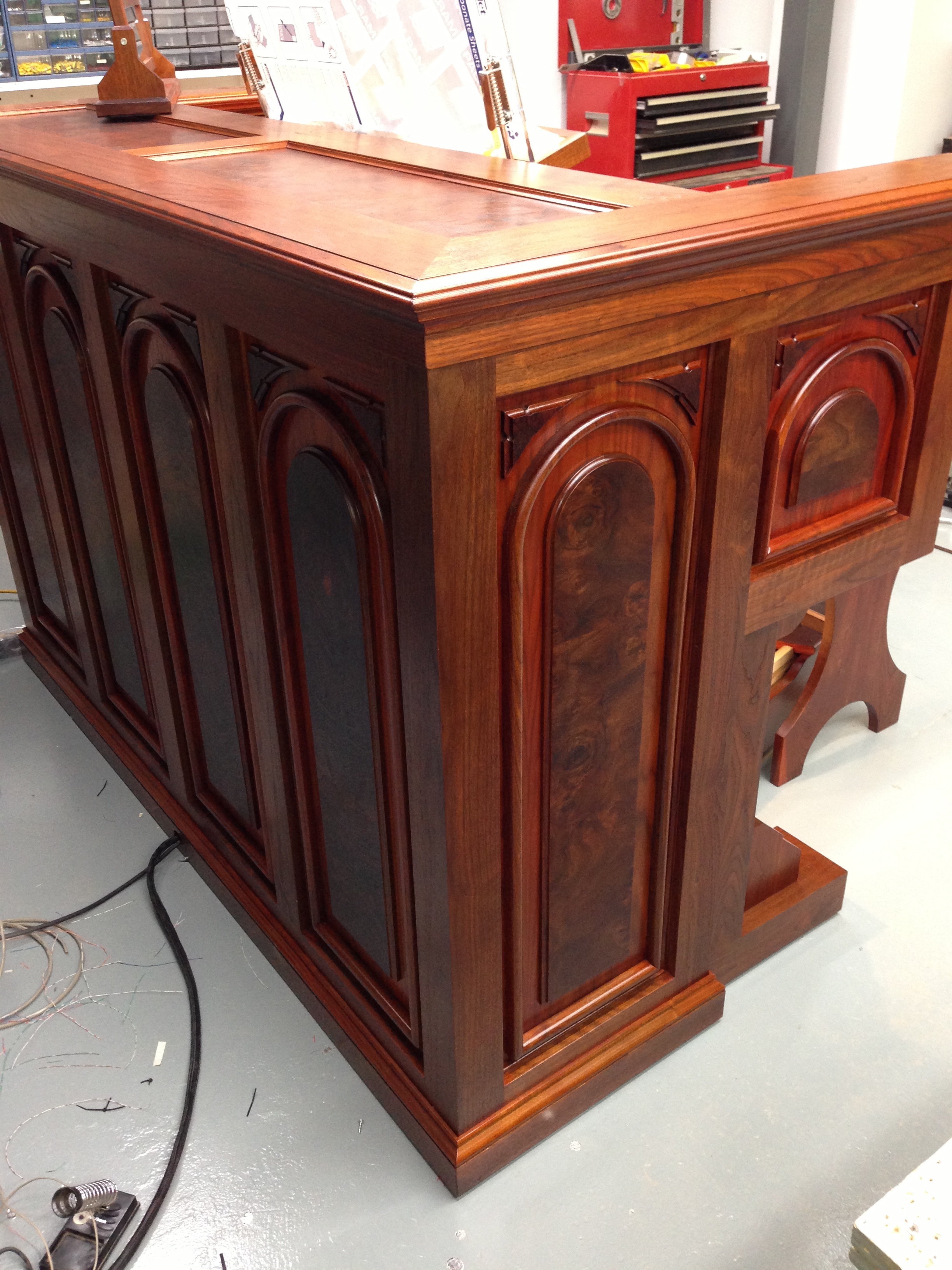

This project was a renovation of Casavant Opus 3448.  We constructed a new Façade to better match the interior of the church.  The new Façade consists of new pipes from the Diapason 8′ and Octave 8′ ranks.  A new Great and Pedal Trumpet 8′ were installed in place of the original ones. A new console was built, and digital additions added to fill out the specification.

Stop List

GREAT 1. Violone 16′
Unenclosed 2. Diapason 8′
Manual II 3. Harmonic Flute 8′
4. Rohrflute 8′
5. Dulciana (Sw) 8′
6. Unda Maris (Sw) 8′
7. Octave 4′
8. Waldflute 4′
9. Octavin 2′
10. Cornet II
11. Fourniture IV 1 1/3′
12. Trumpet 8′
non-coupling 13. Trumpet Harmonique (Choir) 8′
14. French Horn 8′
15. Chimes
16. Tremulant
17. Zimbelstern


SWELL 1. Bourdon 16′
Expressive 2. Geigen Principal 8′
Manual III 3. Bourdon 8′
4. Viole de Gambe 8′
5. Voix Celeste 8′
6. Flute Celeste II 8′
7. Prestant 4′
8. Flute conique 4′
9. Nazard 2 2/3′
10. Doublette 2′
11. Tierce 1 3/5′
12. Quint 1 1/3′
13. Scharff III 1′
14. Basson 16′
15. Trompette 8′
16. Hautbois 8′
non-coupling 17. Trumpet Harmonique (Choir) 8′
18. Tremulant
19. Swell to Swell 16′
20. Swell Unison Off
21. Swell to Swell 4′


CHOIR 1. English Diapason 8′
Expressive 2. Hohlflute 8′
Manual I 3. Viola 8′
4. Viola Celeste 8′
5. Spitz Principal 4′
6. Traverse Flute 4′
7. Blockflute 2′
8. Mixture III 2′
non-coupling 9. Trumpet Harmonique 8′
10. English Horn 8′
11. Clarinet 8′
12. Harp
13. Tremulant
14. Choir to Choir 16′
15. Choir Unison Off
16. Choir to Choir 4′


PEDAL 1. Contra Bourdon 32′
Unenclosed 2. Principal 16′
3. Violone (Great) 16′
4. Subbass 16′
5. Bourdon (Swell) 16′
6. Octave 8′
7. Violone (Great) 8′
8. Gedeckt 8′
9. Choral Bass 4′
10. Cantus Flute (Great) 4′
11. Mixture III 2 2/3′
12. Contre Basson 32′
13. Posaune 16′
14. Basson (Swell) 16′
15. Trumpet 8′
16. Trumpet Harmonique (Choir) 8′
17. Clarion 4′
18. Clarinet (Choir) 4′
19. Chimes (Great)


COUPLERS 1. Great to Pedal 8′
2. Great to Pedal 4′
3. Swell to Pedal 8′
4. Swell to Pedal 4′
5. Choir to Pedal 8′
6. Choir to Pedal 4′
LCD Display
7. Swell to Great 16′
8. Swell to Great 8′
9. Swell to Great 4′
10. Choir to Great 16′
11. Choir to Great 8′
12. Choir to Great 4′
13. Choir to Swell  8′
14. Swell to Choir 16′
15. Swell to Choir 8′
16. Swell to Choir 4′
17. Great/Choir exchange
