Project Description

About this Project

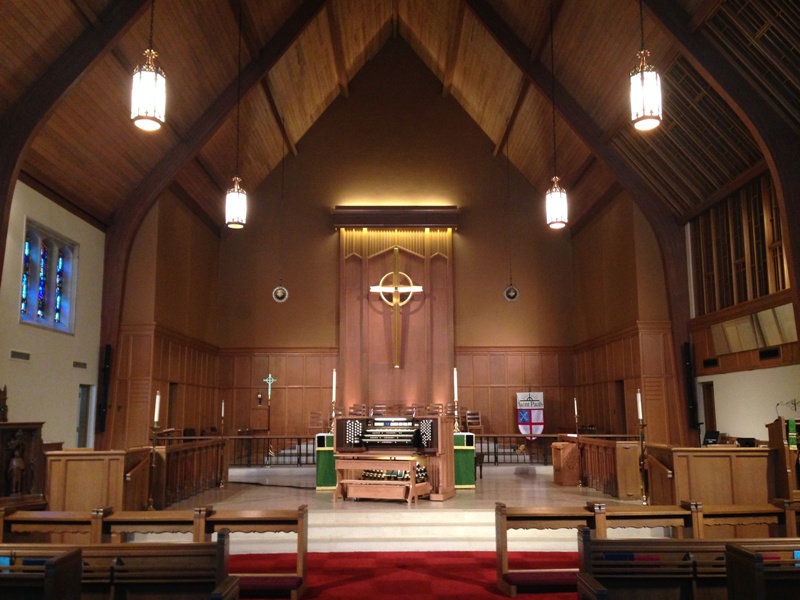

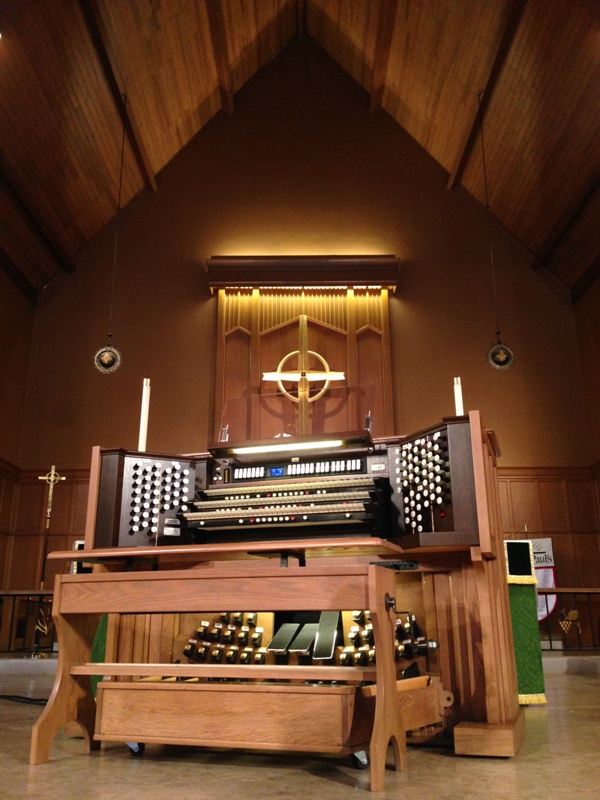

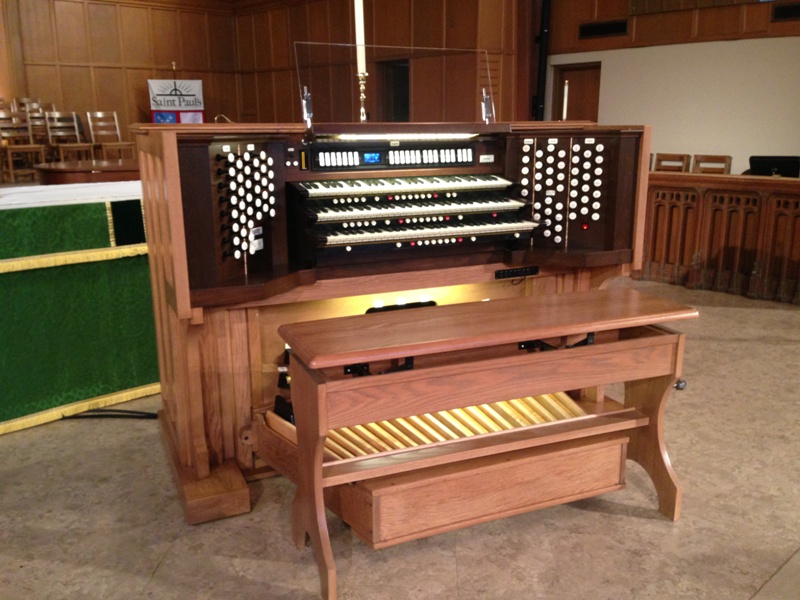

A new console for the 1956 Austin organ with console preparations for pipe additions to the main organ, and new Chancel and Antiphonal divisions. Organ was completely rewired with a Walker switching system.

Stop List

GREAT 1. Contra Spitzflote 16′
Unenclosed 2. Diapason 8′
Manual II 3. Bourdon 8′
4. Spitzflote 8′
5. Octave 4′
6. Nachthorn 4′
7. Fifteenth 2′
8. Mixture III 1 1/3′
9. Bombarde (Ch) 16′
10. Bombarde (Ch) 8′
11. Harp
12. Chimes
13. Great to Great 16′
14. Great Unison Off
15. Great to Great 4′



CHANCEL 16. Geigen Diapason 8′
Unenclosed 17. Gedeckt 8′
Manual II 18. Gemshorn 8′
19. Gemshorn Celeste 8′
20. Principal 4′
21. Gemshorn 4′
22. Flute D’ Amour 4′
23. Nazard 2 2/3′
24. Flautino 2′
25. Larigot 1 1/3′
26. Hautbois 8′


SWELL 1. Hohl Flote 8′
Expressive 2. Viola 8′
Manual III 3. Voix Celeste 8′
4. Principal 4′
5. Rohr Flote 4′
6. Flautino 2′
7. Plein Jeu III 2′
8. Contra Fagotto 16′
9. Trumpet 8′
10. Fagotto 8′
11. Clarion  4′
12. Tremulant
13. Swell to Swell 16′
14. Swell Unison Off
15. Swell to Swell 4′


CHOIR 1. Gedeckt 16′
Expressive 2. Nason Flute 8′
Manual I 3. Dolce 8′
4. Dolce Celeste 8′
5. Principal 4′
6. Koppel Flute 4′
7. Nazard 2 2/3′
8. Principal 2′
9. Blockflute 2′
10. Tierce  1 3/5′
11. Mixture III 1 1/3′
12. Clarinet 8′
13. Bombarde 16′
14. Bombarde 8′
15. Tremulant
16. Choir to Choir 16′
17. Choir Unison Off
18. Choir to Choir 4′
19. Carillon (Interior)
20. Carillon (Exterior)


ANTIPHONAL 1. Gedeckt 8′
Unenclosed 2. Prestant 4′
Floating 3. Spitz Principal 2′
4. Mixture III 1 1/3′
5. Harmonic Trumpet 8′


PEDAL 1. Contra Violone 32′
Unenclosed 2. Contra Bourdon 32′
3. Open Wood 16′
4. Principal (Chan) 16′
5. Diapason 16′
6. Bourdon (Chan) 16′
7. Spitz Flote (Gt) 16′
8. Gedeckt (Ch) 16′
9. Principal 8′
10. Octave (Chan) 8′
11. Spitz Flote (Gt) 8′
12. Bourdon (Chan) 8′
13. Gedeckt (Ch) 8′
14. Fifteenth 4′
15. Flute (Ch) 4′
16. Contra Bombarde 32′
17. Bombarde 16′
18. Fagotto (Sw) 16′
19. Bombarde (Ch) 8′
20. Trumpet 8′
21. Hautbois (Chan) 8′
22. Clarion 4′
23. Hautbois (Chan) 4′


COUPLERS 1. Great to Pedal 8′
2. Great to Pedal 4′
3. Swell to Pedal 8′
4. Swell to Pedal 4′
5. Choir to Pedal 8′
6. Choir to Pedal 4′
7. Antiphonal to Pedal 8′
8. Swell to Great 16′
9. Swell to Great 8′
10. Swell to Great 4′
11. Choir to Great 16′
12. Choir to Great 8′
13. Choir to Great 4′
14. Swell to Choir 16′
15. Swell to Choir 8′
16. Swell to Choir 4′
17. Antiphonal on Great
18. Antiphonal on Swell
19. Antiphonal on Choir
20. Great/Choir exchange
21. Melody Coupler
22. Bass Coupler
