Project Description
About this Project

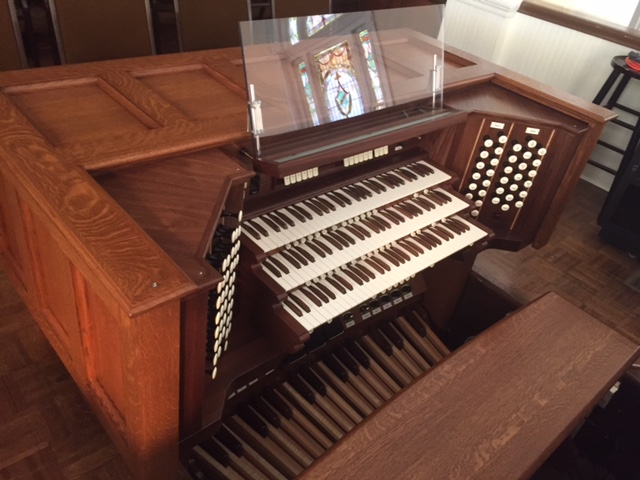

Austin Organ Opus 473, 1913. Added a new console, switching system, releathered all stop primaries, rewired entire organ, moved some pipework/added new pipework onto a new wind chest, and some revoicing.
Stop List
| GREAT | 1. | Bourdon | 16′ |
| Unenclosed | 2. | Principal | 8′ |
| Manual II | 3. | Violone (Choir) | 8′ |
| 4. | Melodia (Choir) | 8′ | |
| 5. | Doppelflute | 8′ | |
| 6. | Unda Maris II (Choir) | 8′ | |
| 7. | Octave | 4′ | |
| 8. | Chimney Flute | 4′ | |
| 9. | Twelfth | 2 2/3′ | |
| 10. | Fifteenth | 2′ | |
| 11. | Seventeenth | 1 3/5′ | |
| 12. | Mixture III | 1 1/3′ | |
| 13. | Tromba | 8′ | |
| 14. | French Horn | 8′ | |
| non-coupling | 15. | Tuba Major (Choir) | 8′ |
| 16. | Chimes | ||
| 17. | Great Super | 4′ |
| SWELL | 1. | Lieblich Gedeckt | 16′ |
| Expressive | 2. | Geigen Principal | 8′ |
| Manual III | 3. | Stopped Diapason | 8′ |
| 4. | Gamba | 8′ | |
| 5. | Gamba Celeste | 8′ | |
| 6. | Flauto Dolce | 8′ | |
| 7. | Flute Celeste | 8 | |
| 8. | Principal | 4′ | |
| 9. | Traverse Flute | 4′ | |
| 10. | Nazard | 2 2/3′ | |
| 11. | Flageolet | 2′ | |
| 12. | Tierce | 1 3/5′ | |
| 13. | Plein Jeu IV | 2′ | |
| 14. | Fagotto | 16′ | |
| 15. | Cornopean | 8′ | |
| 16. | Oboe Horn | 8′ | |
| 17. | Vox Humana | 8′ | |
| 18. | Tremulant | ||
| 19. | Swell Sub | ||
| 20. | Swell Unison Off | ||
| 21. | Swell Super |
| CHOIR | 1. | Dulciana | 16′ |
| Expressive | 2. | Violone | 8′ |
| Manual I | 3. | Melodia | 8′ |
| 4. | Dulciana | 8′ | |
| 5. | Unda Maris | 8′ | |
| 6. | Aeoline | 8′ | |
| 7. | Principal | 4′ | |
| 8. | Harminc Flute | 4′ | |
| 9. | Piccolo | 2′ | |
| 10. | Larigot | 1 1/3′ | |
| 11. | Flugelhorn | 8′ | |
| 12. | Clarinet | 8′ | |
| 13. | English Horn | 8′ | |
| non-coupling | 14. | Tuba Major | 8′ |
| 15. | Harp | ||
| 16. | Tremulant | ||
| 17. | Choir Sub | ||
| 18. | Choir Unison Off | ||
| 19. | Choir Super |
| PEDAL | 1. | Open Diapason | 16′ |
| Unenclosed | 2. | Violone (Choir) | 16′ |
| 3. | Bourdon (Great) | 16′ | |
| 4. | Lieblich Gedeckt (Swell) | 16′ | |
| 5. | Dulciana (Choir) | 16′ | |
| 6. | Quint | 10 2/3′ | |
| 7. | Octave | 8′ | |
| 8. | Doppelflute (Great) | 8′ | |
| 9. | Still Gedeckt (Swell) | 8′ | |
| 10. | Dulciana (Choir) | 8′ | |
| 11. | Choral Bass | 4′ | |
| 12. | Open Flute | 4′ | |
| 13. | Mixture II | 2 2/3′ | |
| 14. | Contra Basson | 32′ | |
| 15. | Trombone | 16′ | |
| 16. | Fagott (Swell) | 16′ | |
| 17. | Tromba (Great) | 8′ | |
| 18. | Cornopean (Swell) | 8′ | |
| 19. | Flugel Horn (Choir) | 4′ | |
| 20. | Chimes (Great) |
| COUPLERS | 1. | Great to Pedal | 8′ |
| 2. | Great to Pedal | 4′ | |
| 3. | Swell to Pedal | 8′ | |
| 4. | Swell to Pedal | 4′ | |
| 5. | Choir to Pedal | 8′ | |
| 6. | Choir to Pedal | 4′ | |
| LCD Display Screen | |||
| 7. | Swell to Great | 16′ | |
| 8. | Swell to Great | 8′ | |
| 9. | Swell to Great | 4′ | |
| 10. | Choir to Great | 16′ | |
| 11. | Choir to Great | 8′ | |
| 12. | Choir to Great | 4′ | |
| 13. | Swell to Choir | 16′ | |
| 14. | Swell to Choir | 8′ | |
| 15. | Swell to Choir | 4′ |
