Project Description

About this Project

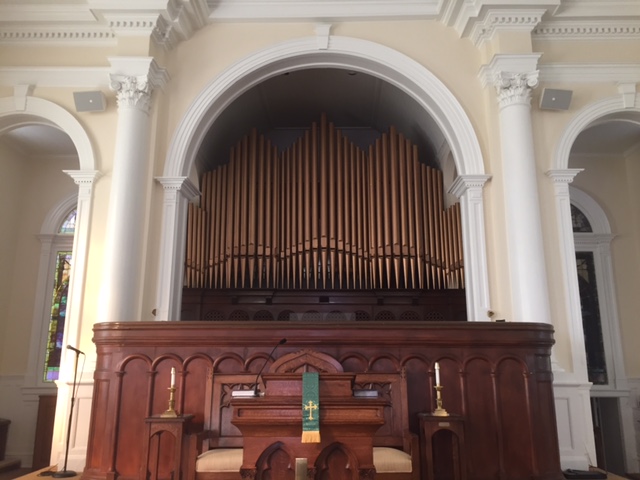

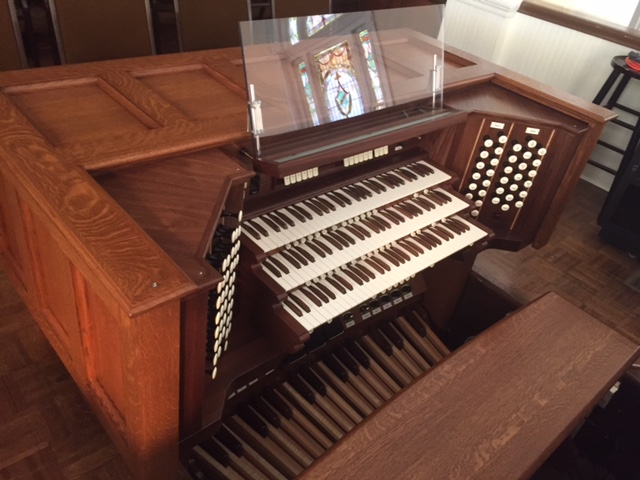

Austin Organ Opus 473, 1913. We will be adding a new console and switching system, some releathering, rewiring entire organ, moving some pipework/ adding new pipework onto a new wind chest, rebuilding the swell expression, and some revoicing.

Stop List

GREAT 1. Bourdon 16′
Unenclosed 2. Principal 8′
Manual II 3. Violone (Choir) 8′
4. Melodia (Choir) 8′
5. Doppelflute 8′
6. Unda Maris II (Choir) 8′
7. Octave 4′
8. Chimney Flute 4′
9. Twelfth 2 2/3′
10. Fifteenth 2′
11. Seventeenth 1 3/5′
12. Mixture III 1 1/3′
13. Tromba 8′
14. French Horn 8′
non-coupling 15. Tuba Major (Choir) 8′
16. Chimes
17. Great Super 4′





SWELL 1. Lieblich Gedeckt 16′
Expressive 2. Geigen Principal 8′
Manual III 3. Stopped Diapason 8′
4. Gamba 8′
5. Gamba Celeste 8′
6. Flauto Dolce 8′
7. Flute Celeste 8
8. Principal 4′
9. Traverse Flute 4′
10. Nazard 2 2/3′
11. Flageolet 2′
12. Tierce 1 3/5′
13. Plein Jeu IV 2′
14. Fagotto 16′
15. Cornopean 8′
16. Oboe Horn 8′
17. Vox Humana 8′
18. Tremulant
19. Swell Sub
20. Swell Unison Off
21. Swell Super



CHOIR 1. Dulciana 16′
Expressive 2. Violone 8′
Manual I 3. Melodia 8′
4. Dulciana 8′
5. Unda Maris 8′
6. Aeoline 8′
7. Principal 4′
8. Harminc Flute 4′
9. Piccolo 2′
10. Larigot 1 1/3′
11. Flugelhorn 8′
12. Clarinet 8′
13. English Horn 8′
non-coupling 14. Tuba Major 8′
15. Harp
16. Tremulant
17. Choir Sub
18. Choir Unison Off
19. Choir Super



PEDAL 1. Open Diapason 16′
Unenclosed 2. Violone (Choir) 16′
3. Bourdon (Great) 16′
4. Lieblich Gedeckt (Swell) 16′
5. Dulciana (Choir) 16′
6. Quint 10 2/3′
7. Octave 8′
8. Doppelflute (Great) 8′
9. Still Gedeckt (Swell) 8′
10. Dulciana (Choir) 8′
11. Choral Bass 4′
12. Open Flute 4′
13. Mixture II 2 2/3′
14. Contra Basson 32′
15. Trombone 16′
16. Fagott (Swell) 16′
17. Tromba (Great) 8′
18. Cornopean (Swell) 8′
19. Flugel Horn (Choir) 4′
20. Chimes (Great)



COUPLERS 1. Great to Pedal 8′
2. Great to Pedal 4′
3. Swell to Pedal 8′
4. Swell to Pedal 4′
5. Choir to Pedal 8′
6. Choir to Pedal 4′
LCD Display Screen
7. Swell to Great 16′
8. Swell to Great 8′
9. Swell to Great 4′
10. Choir to Great 16′
11. Choir to Great 8′
12. Choir to Great 4′
13. Swell to Choir 16′
14. Swell to Choir 8′
15. Swell to Choir 4′
