Project Description

About this Project

This organ features:

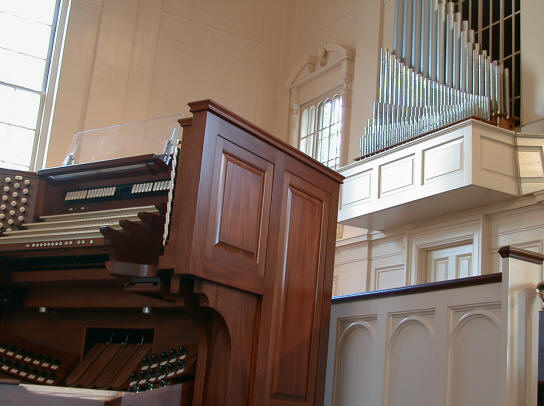

  • Custom designed and built console
  • Drawknobs for stop controls (Harris)
  • Tilt tabs for coupler contols (Harris)
  • Existing Austin keyboards – refurbished
  • New piston rails and thumb pistons
  • Addition of Solo ivory keyboard – refurbished
  • New mahogany pedalboard
  • New Expression Shoes
  • Balanced Choir Expression Shoe
  • Balanced Swell Expression Shoe
  • Balanced Solo Expression Shoe
  • Balanced Crescendo Pedal
  • Indicator lights for all shoes
  • Narthex indicator light with switch
  • Vestry indicator light with switch
  • New solid state switching, console control, combination action
  • Cabinet of mahogany
  • Finished to match existing chancel architectural woodwork
  • Built-in castors for mobility and ease of maintenance
  • Extra-Large Adjustable lighted music desk with On/Off switch
  • Pedalboard lighting with On/Off switch
  • Switch for main organ/blower with indicator light
  • Transposer +6/-6
  • Adjustable organist’s bench designed and finished to match console
  • Complete MIDI Implementation:
    • 10 Programmable MIDI stops on drawknobs
    • MIDI In/Out/Thru ports
    • Sequencer In/Out ports
    • Auxiliary stereo audio input ports – 1/4″ jacks
  • Yamaha sequencer in hidden drawer
  • Existing Maas-Rowe Carillon in The Church Sanctuary and Tower playable from the Great Organ
  • All electronics (digital generators, amplifiers, speakers, etc.) by Walker Technical Co.
  • Final voicing of digital stops by Robert Walker of Walker Technical Co.

Stop List

GREAT
Unenclosed
Manual II

Gemshorn
Principal
Gemshorn
Bourdon
Octave
Waldflote
Doublette
Fourniture IV
Cymbal III
Trompette
Bombarde
Cymbelstern
MIDI on Great
MIDI on Great
Great Unison Off
Zimbelstern
Carillon (Maas Rowe)




16′
8′
8′
8′
4′
4′
2′
8′
8′

A
B




SWELL
Enclosed
Manual III

Rohrbourdon
Geigen Principal
Geigen Celeste
Rohrflote
Viole de Gambe
Voix Celeste
Erzahler
Dulciana Celeste
Principal
Spitzflote
Flute
Quint
Plein Jeu V
Cymbale III
Basson
Basson
Corno di Bassetto
Trompette
Clairon
Vox Humana
MIDI on Swell
MIDI on Swell
Tremulant
Chimes
Swell
Swell Unison Off
Swell




16′
8′
8′
8′
8′
8′
8′
8′
4′
4′
2′
1 1/3′
2′
1 1/3′
16′
8′
8′
8′
4′
8′
A
B
16′

4′



CHOIR
Enclosed
Manual I
   SOLO
Enclosed
Manual IV
Cello
Cello Celeste
Flute Harmonique
Clarinet
English Horn
French Horn
Tuba Major
Bombarde
Cromorne
MIDI on Solo
MIDI on Solo
Tremulant
Solo to Solo
Solo Unison Off
Solo to Solo
8′
8′
8′
8′
8′
8′
8′
8′
8′
A
B
16′

4′

PEDAL
Unenclosed
Pedalboard
Violone
Diapason
Bourdon
Diapason
Violone
Bourdon
Gemshorn (Great)
Rohrbourdon (Swell)
Dulciana (Choir)
Principal
Bourdon
Gemshorn (Great)
Dulciana (Choir)
Rohrflote (Swell)
Choralbass
Koppelflote (Choir)
Nachthorn
Mixture III
Bombarde
Bombarde
Basson (Swell)
Trompette
Corno di Bassetto (Swell)
Trompette (Great)
Trompette (Swell)
Clarinet (Solo)
Krummhorn (Choir)
Krummhorn (Choir)
Clairon (Swell)
Clarinet (Solo)
MIDI on Pedal
MIDI on Pedal
32′
32′
32′
16′
16′
16′
16′
16′
16′
8′
8′
8′
8′
8′
4′
4′
2′
32′
16′
16′
16′
16′
8′
8′
8′
8′
4′
4′
4′
A
COUPLERSGreat to Pedal
Swell to Pedal
Swell to Pedal
Choir to Pedal
Choir to Pedal
Solo to Pedal
Solo to Pedal
Swell to Great
Swell to Great
Swell to Great
Choir to Great
Choir to Great
Choir to Great
Solo to Great
Solo to Great
Solo to Great

Status Screen

Swell to Choir
Swell to Choir
Swell to Choir
Solo to Choir
Solo to Choir
Great to Choir

Choir to Swell
Solo to Swell

Solo Melody to Great
All Swells to Swell
Pedal on any Manual Piston
Bass to Manual

8′
8′
4′
8′
4′
8′
4′
16′
8′
4′
16′
8′
4′
16′
8′
4′

16′
8′
4′
8′
4′
8′

8′
8′

REVERSIBLESAs Thumb Pistons Only:
Swell to Great
Choir to Great
Choir to Swell
As Toe Pistons Only:
Diapason
Bourdon
Bombarde

As Thumb Pistons Duplicated by Toe Pistons:
Great to Pedal
Swell to Pedal
Choir to Pedal
Solo to Pedal
Sforzando – programmable for each Memory Bank
Cymbelstern (digital – lighted)

As lighted thumb pistons (can be set on combination action):
Great/Choir Invert
Crescendo II


8′ removes 4′ / 16′
8′ removes 4′ / 16′
8′ removes 4′ / 16′
32′
32′
32′

8′
8′ removes 4′
8′ removes 4′
8′ removes 4′
